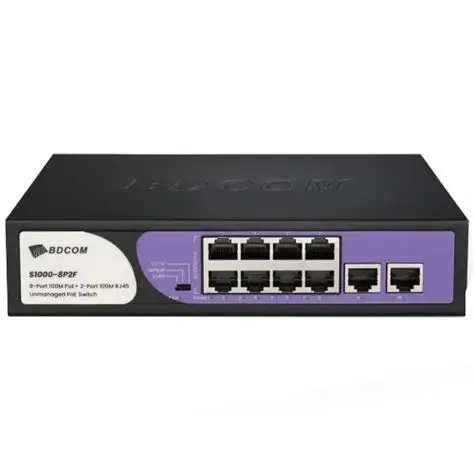

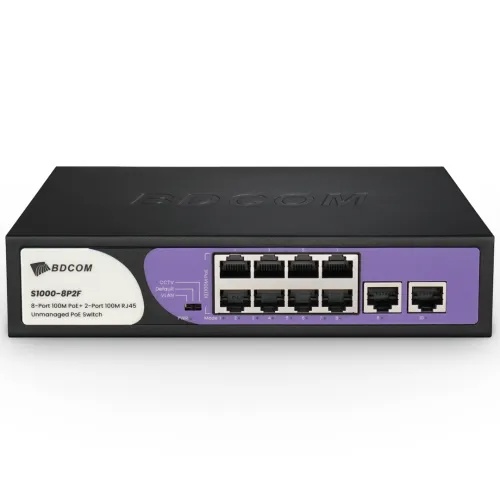

BDCOM S1000-8P2F | 8-PORT 100M POE + 2-PORT 100M RJ45 UNMANAGED POE SWITCH

Key Features

10x 10/100 RJ45 Ports

8× 10/100 PoE Ports

2Gbps Switching Capacity

≤90W PoE Power

₨ 11,300.00 NPR 11300.0 ₨ 11,300.00

₨ 10,000.00


  • Model
  • Brand
  • Series
  • MAC Address Table
  • Switching Capacity
  • PoE Standards
  • Product Type
  • No of Total Ports
  • 100M Port
  • No of PoE Ports
  • PoE+ Port
  • PoE Power Budget
  • Packet Buffer Memory
  • Others

This combination does not exist.

Add to Cart


Share this product:
Model S1000-8P2F
Brand BDCOM
Series S1000-P
MAC Address Table 2K
Switching Capacity 2Gbps
PoE Standards 802.3af/at, maximum output of 30W per port
Product Type Network Switch
No of Total Ports 10 Ports
100M Port 2 (Uplnk)
No of PoE Ports 8 Ports
PoE+ Port 8
PoE Power Budget ≤90W
Packet Buffer Memory 448Kb
Others VLAN mode, Default mode, CCTV mode.

BDCOM S1000-8P2F 8-Port 100mbps Unmanaged PoE Switch

The BDCOM S1000-8P2F is an 8-port 100Mbps unmanaged PoE network switch that provides dependable performance for small to medium-network situations. With 8 PoE+ ports and two additional 100Mbps RJ45 connections, it has a PoE budget of 90W and can provide up to 30W of power per port. This switch supports IEEE802.3af/at standards, making it compatible with a wide range of devices such as IP cameras, access points, and VoIP phones. The BDCOM S1000-8P2F 8-Port 100mbps PoE Switch features a built-in AC220V power supply and intelligent 48V PoE power management, ensuring effective power allocation based on the connected devices. The switch includes many DIP modes to accommodate various configurations, including a CCTV mode that extends PoE transmission across ports 1 to 8, as well as a VLAN mode that isolates these ports for improved network security. The BDCOM S1000-8P2F 8-Port 100mbps PoE Switch, designed for non-blocking switching, provides line-speed networking while maintaining seamless, high-definition video transmission and optimal performance across all ports. It supports IEEE802.3x full-duplex and Backpressure half-duplex flow control to prevent packet loss, and its huge buffer architecture contributes to data stream stability. The switch also has advanced PoE capabilities including short-circuit and overcurrent protection, as well as integrated lightning protection, to protect your network equipment. This BDCOM S1000-8P2F 8-Port PoE Switch meets CE and FCC safety standards, ensuring that your connected devices receive safe, reliable, and high-quality PoE output. It is an excellent choice for enterprises seeking an economical yet powerful switch that can manage high-power PoE requirements while maintaining stable network performance in challenging situations.
