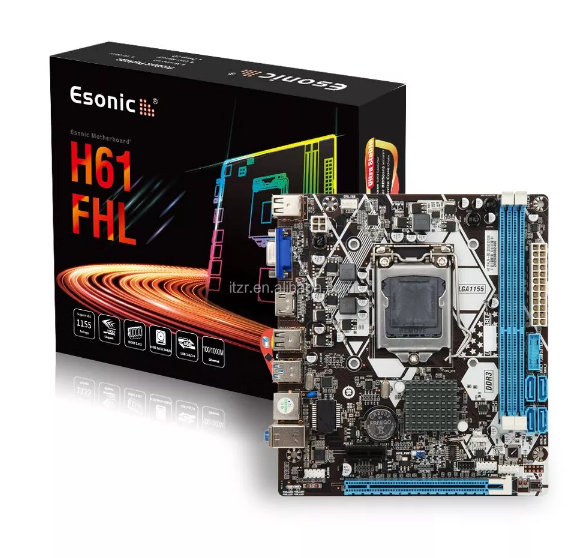

Esonic H61 Motherboard
Pentium, Celeron, Core i5, Core i3, Core i7 2nd and 3rd processors supported
LGA1155 Socket
Bus Clock
1600 MHz, 1333 MHz, 1066 MHz
₨ 6,500.00 ₨ 7,000.00 (7% OFF)
₨ 7,000.00
Share this product:
| Brand | Esonic |
| Compatible Devices | Personal Computer, Mouse |
| Maximum Memory Supported | 16GB |
| GRAPHICS CARD INTERFACE | PCI-Express x16 |
| PROCESSOR SOCKET | LGA 1155 |
| RAM Memory Technology | DDR3 |
| Processor Type | Supports Intel® i7/i5/i3/Pentium/Celeron processors in LGA1155 |
| COMPATIBLE PROCESSOR TYPES | Intel Celeron |
| Model | H61 |
| Dimension | 25 x 20 x 3 cm; 550 Grams |
| CHIPSET TYPE | Intel H61 Express |
| LAN | Supports Realtek 8106E 10/100 Mbps |
| Audio | Realtek 662 3xAudio Jacks for 6 channel High definition audio |
- Processor Support : Support Intel i7/i5/i3/Pentium processor in LGA1155 (Intel 2nd and 3rd Gen).
- Chipset : Intel H61.
- Memory Support : 2 DDR3 Dual-Channel slots, support DDR3 1066/1333/1600Mhz memory.
- LAN : Support Realtek 8105E 100Mbps.
- Audio : Realtek 662 3x Audio jacks for 6 channel high definition audio.
- Back Panel Port : 1 PS/2 Mouse & Keyboard, 1 VGA port, 1 serial port,4USB 2.0 port,1 LAN port, Audio Jack.
- On board Connectors : 1 x Front panel connector, 1 x speaker connector, 1 x Front panel audio connector (2 x 5pin), 4 x USB 2.0 ports, 4 x SATA 3Gb/s (SATAII) ports, 1 x 4pin CPU fan connector,1 x 24-pin ATX power connector, 1 x 4-pin ATX 12V power connector, 1 x 2 pin clear CMOS header.
- On board Slots : 1 PCI Express x16 slot, 1 PCI Express x1 slot.
