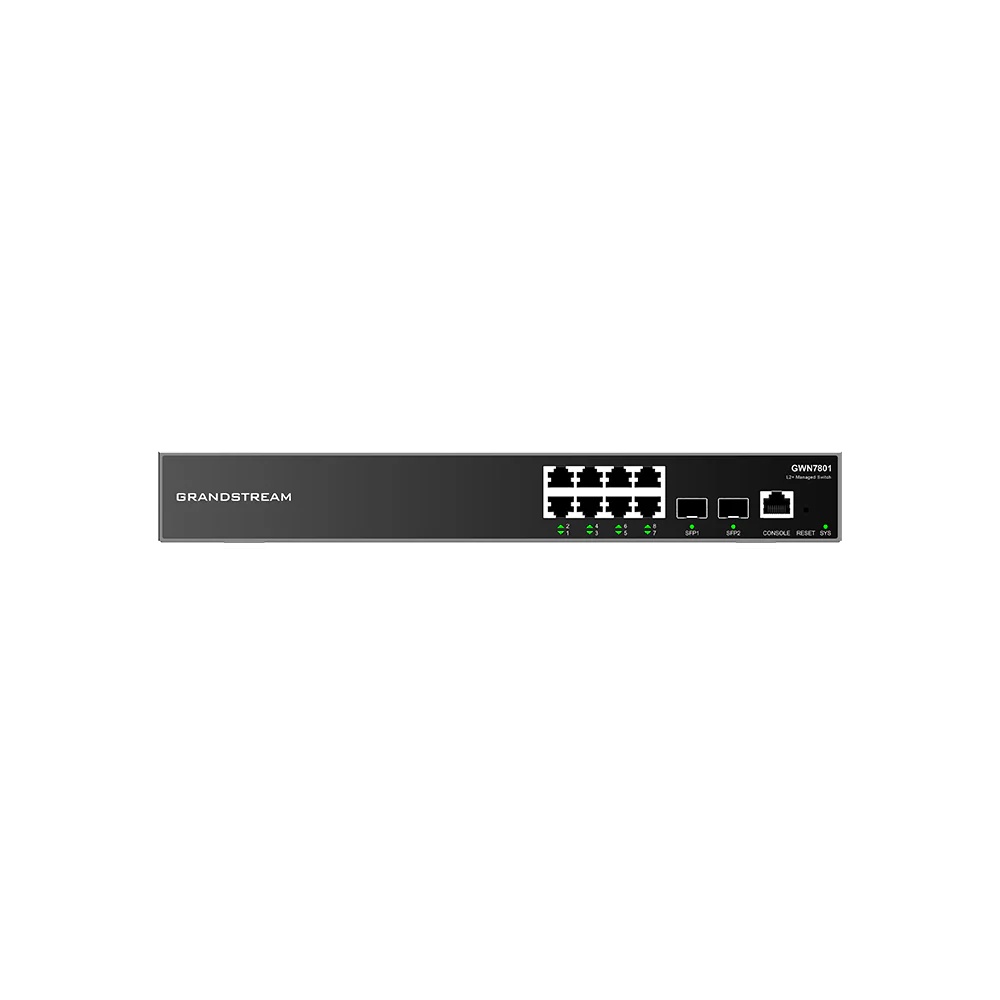

Grandstream GWN7801 Layer 2+ Managed Network Switches

GRANDSTREAM GWN7801 – Specifications

• Network Protocols: IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s
• PoE Standards: N/A
• Gigabit Ethernet Ports: 8
• Gigabit SFP Ports: 2
• Console Port: 1
• Number of PoE Ports: N/A
• Integrated Power Supply: 30W
• Max Output Power per PoE Port: N/A
• Max Total PoE Output Power: N/A
• Surge Protection: ± 6KV Common Mode (CM) and Differential Mode (DM) for power; ± 4KV CM for network ports
• ESD Protection: ± 12KV for contact discharge
• Auxiliary Ports: 1x Reset Pinhole
• Forwarding Mode: Store-and-forward
• Total Non-blocking Throughput: 10Gbps
• Switching Capability: 20Gbps
• Forwarding Rate:88Mpps
• Packet Buffer:1Mb
• Network Latency: Average < 4µs
• Switching Features:
  • 8K static, dynamic and filtering MAC addresses
  • 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN
  • VLAN virtual interface
  • GVRP (pending)
  • 8 link aggregation groups
  • Spanning tree, 16 instances for STP/RSTP/MSTP
• Multicast: IGMP Snooping, MLD Snooping, MVR
• QoS/ACL:
  • Auto detection and prioritization of voice/video/RTP/SIP/other latency-sensitive packets (pending)
  • Port priority
  • Priority mapping
  • Queue scheduling: SP, WRR, WFQ, SP-WRR and SP-WFQ
  • Traffic shaping
  • Rate limit
  • 5K ACL for Ethernet, IPv4 and IPv6
• DHCP: DHCP server, DHCP relay, Option 82, 60, 160 and 43
• Maintenance: CPU and memory monitoring, SNMP, RMON, LLDP & LLDP-MED, backup and restore, syslog, alert, diagnostics (Ping, Traceroute, port mirroring, UDLD – TBD, copper test)
• Security Features:
  • User hierarchical management and password protection, HTTPS, SSH, Telnet
  • 1X authentication
  • AAA authentication including RADIUS, TACACS+
  • Storm control
  • Port isolation, port security, sticky MAC
  • Filtering MAC address
  • IP source guard, DoS attack prevention, ARP inspection
  • DHCP Snooping
  • Loop protection including BPDU protection, root protection and loopback protection
  • Kensington Security Slot (Kensington Lock) support
• LEDs: 1x tri-color LED for device tracking and status indication, 10x green-color LEDs for data ports
• Fan: Fanless
• Environmental:
  • Operation: 0°C to 45°C, humidity 10-90% RH (Non-condensing)
  • Storage: -10°C to 60°C, humidity: 5% to 95% (Non-condensing)
• Dimensions: 330mm(L) x 175mm(W) x 44mm(H)
• Unit Weight:8Kg
• Mounting: Desktop, Wall-Mount, or Rack-Mount (rack-mounting kits included)
• Package Content: 1x Switch, 1x 1.2m (10A) AC Cable, 8x screws, 1x Ground Cable, 4x Rubber Feet, 1x Quick Installation Guide, 1x Power Cord Anti-Trip, 2x Rack Mounting Kits
• Compliance: FCC, CE, RCM, IC, UKCA
