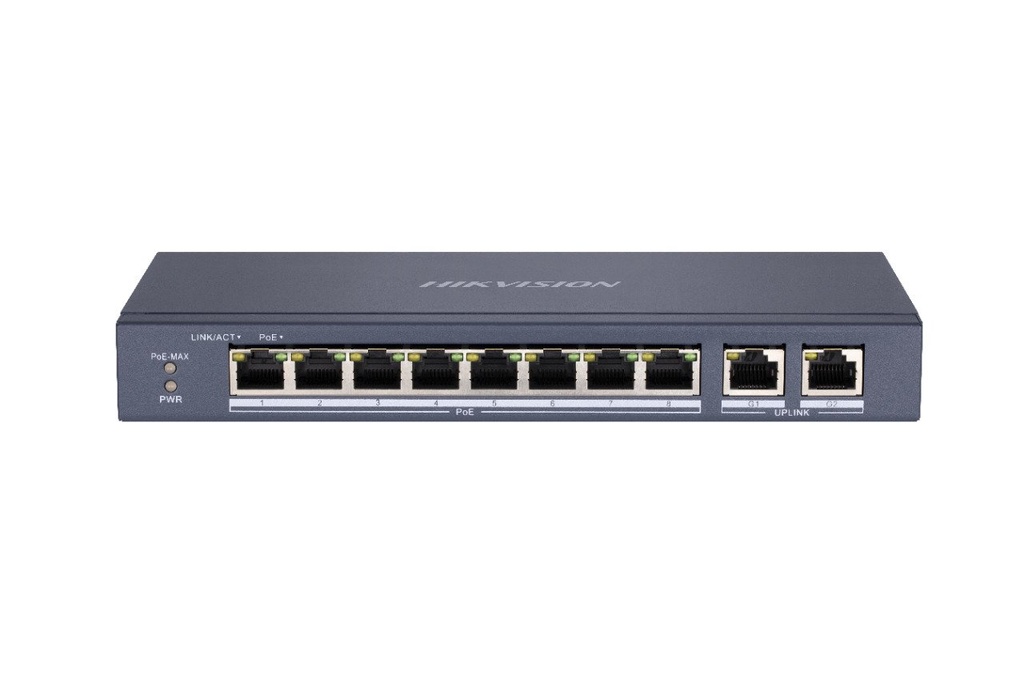

Hikvision 8 port Poe Network switch DS310P DS-3E0109P-E/M
- 8 × 10/100Mbps PoE ports, and and 2 × Gigabit RJ45 port.
- IEEE 802.3at/af standard for PoE ports (Max. 60 W PoE output).
- IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab standard.
- 6 KV surge protection for PoE ports.
- Up to 300 m long-range transmission.
- Wire-speed forwarding.
- Store-and-forward switching.
- Solid high-strength metal shell.
- Reliable fan-free design.
₨ 10,000.00 ₨ 10,000.00
₨ 10,000.00
Share this product:
| Storage temperature | –40 °C to 85 °C (–40 °F to 185 °F) |
| Ports | 8 × 10/100Mbps PoE ports, and 2 × gigabit RJ45 ports |
| Net Weight | 0.56 kg (1.23 lb) |
| Gross Weight | 1.20 kg (2.65 lb) |
| Power Supply | 48 VDC, 1.35 A |
| Operating Humidity | 5% to 95% (no condensation) |
| Operating temperature | –10 °C to 40 °C (14 °F to 104 °F) |
| Switching capacity | 5.6 Gbps |
| Port Type | RJ45 port, full duplex, MDI/MDI-X adaptive |
| Working Mode | Standard mode (default), Extend mode |
| Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab |
| Forwarding Mode | Store-and-forward switching |
| High Priority Ports | NA |
| MAC Address Table | 16 K |
| Packet Forwarding Rate | 4.1664 Mpps |
| Internal Cache | 4 Mbits |
| Dimensions (W × H × D) | 217.6 mm × 103.35 mm × 27.8 mm (8.57” × 4.07” × 1.09”) |
| Shell | Metal material, fan-free design |
| Power Consumption In Idle | < 5 W |
- 8 × 10/100Mbps PoE ports, and and 2 × Gigabit RJ45 port.
- IEEE 802.3at/af standard for PoE ports (Max. 60 W PoE output).
- IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab standard.
- 6 KV surge protection for PoE ports.
- Up to 300 m long-range transmission.
- Wire-speed forwarding.
- Store-and-forward switching.
- Solid high-strength metal shell.
- Reliable fan-free design.
