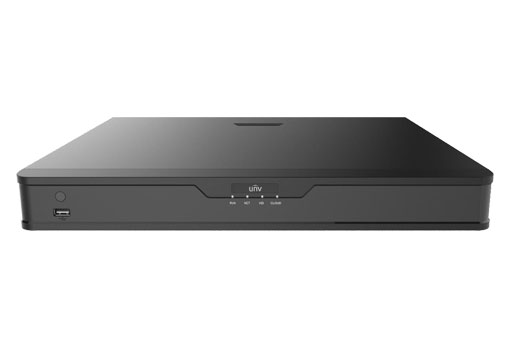

UNV NVR301-16S3 (16CH NVR 1 SATA) Network Video Recorder

Network Interface	1 RJ45 10M/100M self-adaptive Ethernet Interface
USB Interface	Rear panel: 2 x USB2.0
Liveview display	1/4/6/8/9/16
Model	NVR301-04S3-P4
Capacity	Up to 8TB for each disk (The maximum HDD capacity varies with environment temperature)
Power Supply	12V DC Power Consumption: ≤5 W (without HDD)
Audio Output	1-ch, 3.5mm
IP Video Input	16-ch
Incoming Bandwidth	64Mbps
Outgoing Bandwidth	48Mbps
Remote Users	128
Protocols	TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP, RTSP
Recording Resolution	4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Compression	G.711A, G.711U
Synchronous Playback	16-ch
Corridor Mode Screen	3/4/5/7/9/10/12/16
SATA	1 SATA interface
HDMI/VGA Output	HDMI: 3840x2160/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz VGA: 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
FTP/Schedule/Event Snapshot	1-ch snapshot, up to D1 resolution
Decoding format	Ultra 265/H.265/H.264
Liveview/Playback	4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability	1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 4 x 1080p@30, 8 x 720p@30
Dimensions (W×D×H)	260mm × 240mm × 46mm (10.2"×9.4"×1.8 ")
Weight (without HDD)	≤0.98kg (2.16 lb)

Support Ultra 265/H.265/H.264 video formats

4/8/16-channel input

Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols

Support 1-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840x2160) resolution

HDMI and VGA simultaneous output

Up to 4K resolution recording

1 SATA HDD up to 8TB

Support cloud upgrade
