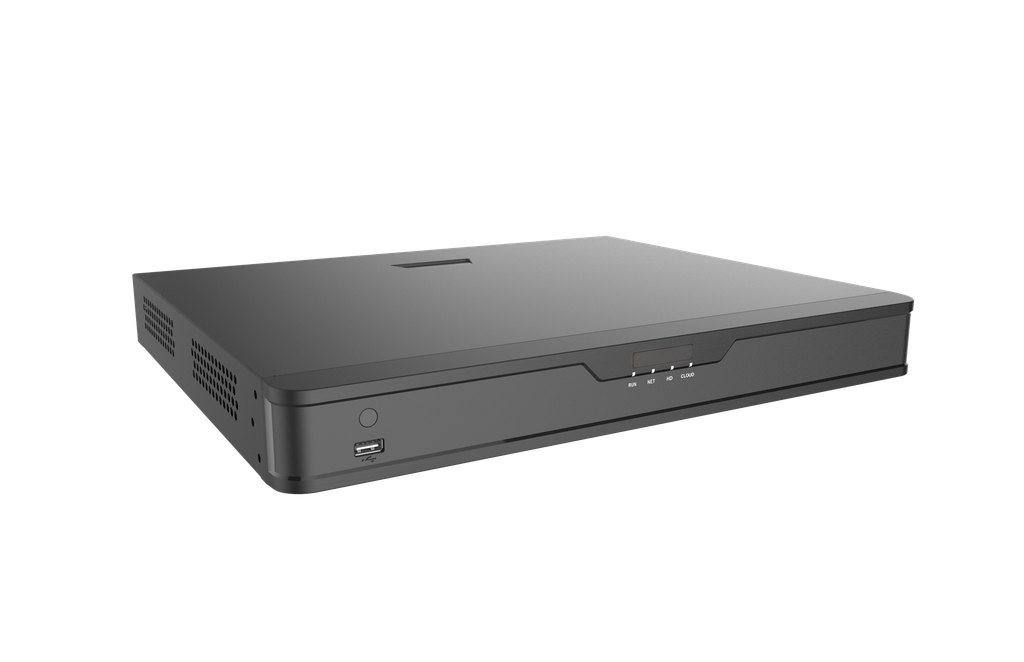

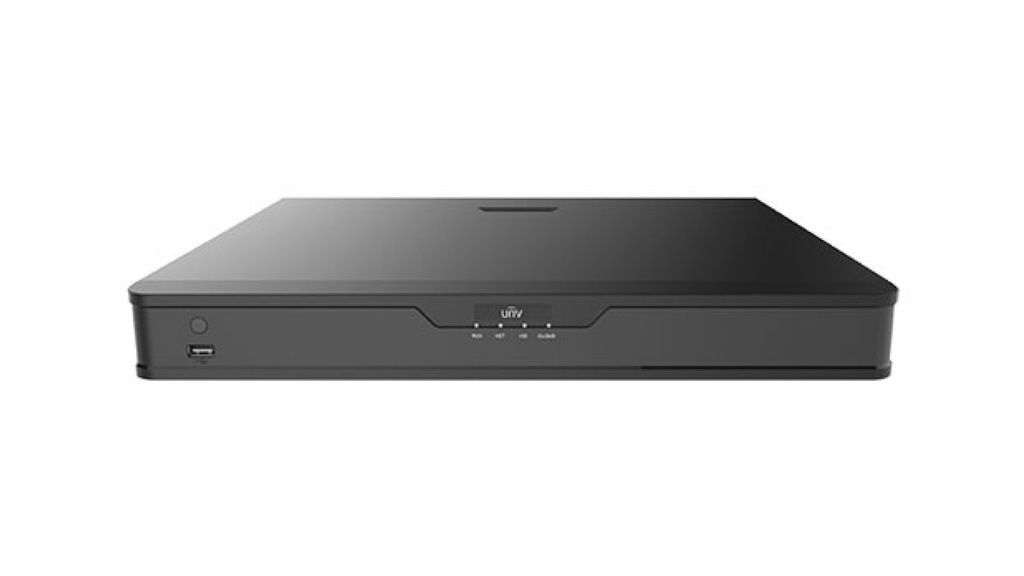

UNV NVR302-32B-IQ (32CH NVR 2SATA) Network Video Recorder

• Model
  • NVR302-32S
• IP Video Input
  • 32-ch
• Two-way Audio Input
  • 1-ch, RCA
• Incoming bandwidth
  • 160Mbps
• Outgoing bandwidth
  • 64Mbps
• Remote Users
  • 128
• Protocols
  • TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP
• Audio Output
  • 1-ch, RCA
• Audio Compression
  • G.711A, G.711U
• Recording Resolution
  • 8MP/5MP/4MP/3MP/1080p/960p/720p/960H/D1/2CIF/CIF
• Synchronous Playback
  • 32-ch
• Liveview display
  • 1/4/6/8/9/16/25/36
• Corridor Mode Screen
  • 3/4/5/7/9/10/12/16/32
• FTP/Schedule/Event Snapshot
  • 4-ch snapshot, up to D1 resolution
• Decoding format
  • Ultra 265/H.265/H.264
• Live view/Playback
  • 8MP/5MP/4MP/3MP/1080p/960p/960H/720p/D1/2CIF/CIF
• Capability
  • 2 x 4K@30, 3 x 5MP@30, 4 x 4MP@30, 5 x 3MP@30, 8 x 1080p@30, 16 x 720p@30,32 x D1
• SATA
  • 2 SATA interfaces
• Capacity
  • Up to 8TB for each disk
• VCA Detection by Camera
  • Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking
• VCA Search
  • Behavior Search
• Smart Intrusion Prevention (SIP) by Camera
  • 8-ch
• General Alarm
  • Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
• Alert Alarm
  • IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
• Power Supply
  • 12V DC
• Working Environment
  • -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing)
