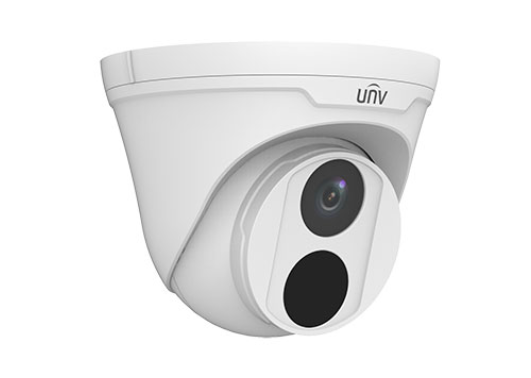

UNV 2mp Normal Dome Camera (IPC3612LB-SF28-A)

Guest
Login
My Cart Wishlist (0)

Brand	Uniview
Memory card slot	yes
Model	IPC3612LB-SF28-A
Matrix resolution	2 Mpx
Wi-Fi support	no
Video standard	IP
Type of instalation	wall, ceiling, overhead
Form factor	dome
Matrix type	1/2.8'' progressive scan CMOS
Viewing angle	no data
Light sensitivity	0,01 Lx, 0 Lx with IR
Illumination distance	20m
Lifetime	≥60,000 hours

	IPC3612LB-SF28-A
Camera
Sensor	1/2.8", 2.0 megapixel, progressive scan, CMOS
Lens	2.8mm@F2.0
DORI Distance	Lens (mm)		Detect (m)		Observe (m)	Recognise (m)		Identify (m)
	2.8		43.4		17.4	8.7		4.3
	4.0		62.1		24.8	12.4		6.2
Angle of view (H)	106.7°
Angle of View (V)	57.1°
Angle of View (O)	115.7°
Shutter	Auto/Manual, 1~1/100000s
Adjustment angle	Pan: 0° ~ 360°			Tilt: 0° ~ 80°			Rotate: 0° ~ 360°
Minimum Illumination	Colour: 0.01Lux (F2.0, AGC ON) 0Lux with IR on
Day/Night	IR-cut filter with auto switch (ICR)
Digital Noise Reduction	2D/3D DNR
S/N	>52dB
IR Range	Up to 30m (98ft) IR range
Wavelength	850nm
IR On/Off Control	Auto/Manual
Defog	Digital Defog
WDR	DWDR
Video
Video Compression	Ultra 265, H.265, H.264
H.264 code profile	Baseline profile, Main profile, and high profile
Frame Rate	Main Stream: 1080P (19201080), Max 30fps; 720P (1280720), Max 30fps Sub Stream: D1 (720576), Max 30fps; 640360, Max 30fps; 2CIF (704288), Max 30fps; CIF (352288), Max 30fps;
Video Bit Rate	128 Kbps~16 Mbps
OSD	Up to 4 OSDs
Privacy Mask	Up to 4 areas
ROI	Up to 8 areas
Motion Detection	Up to 4 areas
White Balance		Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction		2D/3D DNR
Smart IR		Supported
Flip		Normal/Vertical/Horizontal/180°
Dewarping		N/A
HLC		Supported
BLC		Supported
Network
Protocols	IPv4, IGMP, ICMP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, UPnP, and HTTP
Compatible Integration	API
Client	EZStation EZView EZLive
Web Browser	Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+
Interface
Network	10/100M Base-TX Ethernet
Certifications
Certifications		CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15
General
Power	DC 12V±25%, PoE (IEEE 802.3af)
	Power consumption: max. 5.0W
Dimensions (Ø x H)	118 x 95mm (4.6” x 3.8”)
Net Weight	0.29kg (0.64lb)
Material	Metal + Plastic
Working Environment	-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Storage Environment	-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge Protection	4KV
Ingress Protection	IP67
Reset Button	N/A
