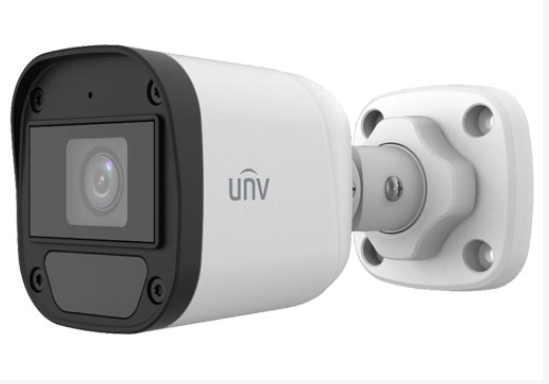

UNV COLOR HUNTER ANALOG CAMERA UAC-B112-F40-W 2MP/4.0MM

• 2MP high-quality image
• TVI/AHD/CVI/CVBS
• Supports white light illumination and 24/7 colour images
• Supports 180° horizontal flip and 180° vertical flip
• OSD configuration menu, easy to operate
• IP67 waterproof and dustproof design, high reliability
• OSD configuration menu in 11 languages

₨ 3,299.00 NPR 3299.0 ₨ 3,600.00 (8% OFF)

₨ 3,600.00

Brand
- Uniview
Model
- UAC-B112-F40-W
Resolutions
- 1080P: 1920(H)×1080(V)
Lens
- 4.0mm
Illumination distance
- 20m
Lifetime
- ≥60,000 hours
Pixel
- 2mp

This combination does not exist.

Add to Cart

Uniview

Share this product:

Brand	Uniview
Model	UAC-B112-F40-W
Resolutions	1080P: 1920(H)×1080(V)
Lens	4.0mm
Illumination distance	20m
Lifetime	≥60,000 hours
Pixel	2mp

Model
UAC-B112-F40-W
Sensor
Pixel
2MP
Size
1/3"
Minimum illumination
0.01 lux (F1.6, AGC ON)
0 lux (white light on)
Lens
Lens
4.0mm
Lens mount
M12
Angle of view
H: 82.5°; V: 42.1°; D: 98.6°
Illuminator
Illuminator
One white-light illuminator
Illumination distance
20m
Lifetime
≥60,000 hours
Video
Resolution
1080P: 1920(H)×1080(V)
720P: 1280 (H) ×720 (V)
Frame rate
TVI/AHD/CVI: 1080P@30fps, 1080P@25fps; 720P@30fps, 720P@25fps
CVBS: PAL, NTSC
Shutter time
PAL: 1/25s-1/50000s
NTSC: 1/30s–1/50000s
Exposure mode
4 modes: Global (default), BLC, HLC, and DWDR
Day/Night
24/7 colour images
Digital noise reduction
2D/3D
White balance
Two modes: Auto (default), Manual
WDR
DWDR
Flip
Supports 180° horizontal flip and 180° vertical flip
Interface
Power
5.5mm power interface
Video output
BNC supports TVI, AHD, CVI, and CVBS
Operating environment
Temperature
-30°C to 60°C (-22°C to 140°C)
Humidity
≤95% (RH, non-condensing)
Surge protection
4KV
Ingress protection
IP67
General
Power
DC 12V (±25%), with reverse polarity protection and surge protection, max. 2.4W
Mount
3D bracket supplied, surface mount (default), optional backbox, pole mount bracket
Dimensions
**142mm63mm65mm (LWH)
Material
Plastic
Weight
145g(0.32lb)
Certification
CB, CE, FCC**

UNV COLOR HUNTER ANALOG CAMERA UAC-B112-F40-W 2MP/4.0MM

₨ 3,299.00 NPR 3299.0 ₨ 3,600.00 (8% OFF)

₨ 3,600.00

Share this product:

Specifications

Description

Reviews & Rating

Model

UAC-B112-F40-W

Sensor

Pixel

2MP

Size

1/3"

Minimum illumination

0.01 lux (F1.6, AGC ON)0 lux (white light on)

Lens

Lens

4.0mm

Lens mount

M12

Angle of view

H: 82.5°; V: 42.1°; D: 98.6°

Illuminator

Illuminator

One white-light illuminator

Illumination distance

20m

Lifetime

≥60,000 hours

Video

Resolution

1080P: 1920(H)×1080(V)720P: 1280 (H) ×720 (V)

Frame rate

TVI/AHD/CVI: 1080P@30fps, 1080P@25fps; 720P@30fps, 720P@25fpsCVBS: PAL, NTSC

Shutter time

PAL: 1/25s-1/50000sNTSC: 1/30s–1/50000s


Exposure mode

4 modes: Global (default), BLC, HLC, and DWDR

Day/Night

24/7 colour images

Digital noise reduction

2D/3D

White balance

Two modes: Auto (default), Manual

WDR

DWDR

Flip

Supports 180° horizontal flip and 180° vertical flip

Interface

Power

5.5mm power interface

Video output

BNC supports TVI, AHD, CVI, and CVBS

Operating environment

Temperature

-30°C to 60°C (-22°C to 140°C)

Humidity

≤95% (RH, non-condensing)

Surge protection

4KV

Ingress protection

IP67

General

Power

DC 12V (±25%), with reverse polarity protection and surge protection, max. 2.4W

Mount

3D bracket supplied, surface mount (default), optional backbox, pole mount bracket

Dimensions

142mm*63mm*65mm (L*W*H)

Material

Plastic

Weight

145g(0.32lb)

Certification

CB, CE, FCC
