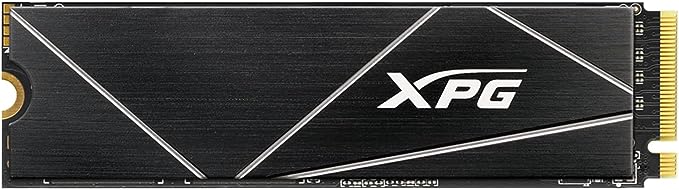

XPG GAMMIX S70 Blade M.2 NVME 1TB PCIe Gen4x4 2280 Internal Solid State Drive/SSD

/shop/product/xpg-gammix-s70-blade-m-2-nvme-1tb-pcie-gen4x4-2280-internal-solid-state-drive-ssd-3024

Brand
- XPG
Interface
- PCIe Gen4x4
Storage temperature
- -40°C – 85°C
Weight
- 10g / 0.35oz (with heatsink), 7g / 0.24oz (without heatsink)
Manufacturer
- ‎ADATA
Operating Temperature
- 0°C – 70°C
Dimensions (L x W x H)
- 80 x 22 x 4.3mm / 3.15 x 0.87 x 0.17inch (with heatsink), 80 x 22 x 3.3mm / 3.15 x 0.87 x 0.12inch (without heatsink)
NAND Flash
- 3D NAND
Controller
- Innogrit IG5236
Shock resistance
- 1500G / 0.5ms
MTBF
- 2,000,000 hours
Sequential Read (Max*)
- Up to 7400MB/s (PC/Laptop)
Sequential Write (Max*)
- Up to 5500MB/s
4KB Random Read IOPS(Max*)
- Up to 350K
4KB Random Write IOPS(Max*)
- Up to 720K
Capacity
- 1TB
Form Factor
- M.2 2280

This combination does not exist.

Add to Cart

Brand	XPG
Interface	PCIe Gen4x4
Storage temperature	-40°C – 85°C
Weight	10g / 0.35oz (with heatsink), 7g / 0.24oz (without heatsink)
Manufacturer	‎ADATA
Operating Temperature	0°C – 70°C
Dimensions (L x W x H)	80 x 22 x 4.3mm / 3.15 x 0.87 x 0.17inch (with heatsink), 80 x 22 x 3.3mm / 3.15 x 0.87 x 0.12inch (without heatsink)
NAND Flash	3D NAND
Controller	Innogrit IG5236
Shock resistance	1500G / 0.5ms
MTBF	2,000,000 hours
Sequential Read (Max*)	Up to 7400MB/s (PC/Laptop)
Sequential Write (Max*)	Up to 5500MB/s
4KB Random Read IOPS(Max*)	Up to 350K
4KB Random Write IOPS(Max*)	Up to 720K
Capacity	1TB
Form Factor	M.2 2280

Interface: PCIe Gen4 NVMe 1.4
Speed on PS5: Under the operating environment of the PS5, the sequential read speed of both 1TB and 2TB models measured at 6100MB/s * To be able to work on PS5, PS5 firmware 21.02-04.00.00.42 or higher is required
Speed on PC/Laptop: Sequential R/W up to 7400/6800MB/s *Test performed in ADATA internal lab, actual performance varies by paired system and testing environment. When paired with PCie 3.0 port, max R/W will be limited to 3400/3000MB/s
Form factor: M.2 2280 *This drive will only work with M/B that supports PCIe 4 (PCIe 3 backward compatible). The drive is designed to work with direct installation onto M/B, it may not work with
