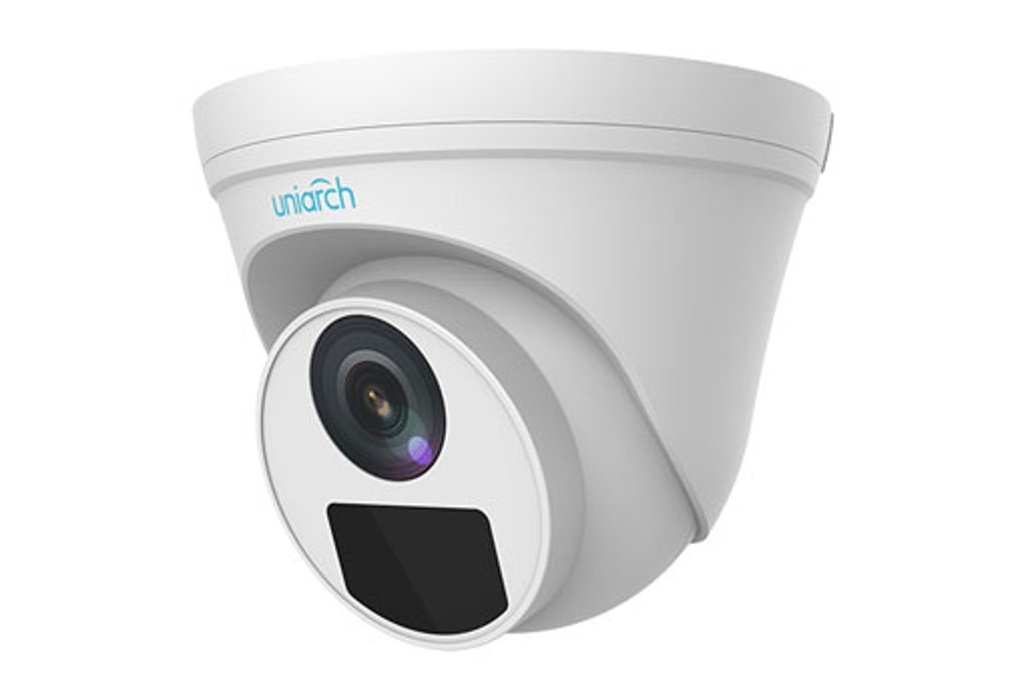

Uniarch 2MP Fixed Dome Network Camera (IPC-T122-APF28)

This combination does not exist.

Add to Cart

Brand	Uniarch
Model	IPC-T122-APF28

	IPC-T122-APF28
Camera
Sensor	1/2.8", progressive scan, CMOS
Lens	2.8mm@F2.1				4.0mm@F2.1
DORI Distance	Lens (mm)	Detect (m)		Observe (m)		Recognize (m)		Identify (m)
	2.8	43.4		17.4		8.7		4.3

Angle of View (H)	106.7°
Angle of View (V)	57.1°
Angle of View (O)	115.7°
Adjustment angle	Pan: 0° ~ 360°		Tilt: 0° ~ 80°				Rotate: 0° ~ 360°
Shutter	Auto/Manual, 1 ~ 1/100000s
Minimum Illumination	Colour: 0.02Lux (F2.1, AGC ON) 0Lux with IR
Day/Night	IR-cut filter with auto switch (ICR)
Digital noise reduction	2D/3D DNR
S/N	>52dB
IR Range	Up to 30m (98ft) IR range
Defog	Digital Defog
WDR	DWDR
Audio
Audio Compression	G.711
Suppression	Supported
Sampling Rate	8KHZ
Video
Video Compression	Ultra 265, H.265, H.264
H.264 code profile	Baseline profile, Main profile, High profile
Frame Rate	Main Stream: 1080P (19201080), Max 25fps; 720P (1280720), Max 25fps; Sub Stream: D1 (720576), Max 25fps; 640360,Max 25fps; 2CIF(704288), Max 25fps; CIF(352288), Max 25fps;
HLC	Supported
BLC	Supported
OSD	Up to 4 OSDs
Privacy Mask	Up to 4 areas
ROI	Up to 8 areas
Motion Detection	Up to 4 areas
Network
Protocols	IPv4, IGMP, ICMP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, UPnP, HTTP, RTMP
Compatible Integration	ONVIF (Profile S, Profile T), API
Interface
Network	10/100M Base-TX Ethernet
Built-in Mic	Supported
General
Power	DC 12V±25%, PoE
	Power consumption: Max 3.5W
Dimensions (Ø x H)	Ø118 x 97mm (Ø4.6” x 3.8”)
Weight	0.25kg (0.55lb)
Working Environment	-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge Protection	4KV
Ingress Protection	IP67
Reset Button	N/A
